SPECIFICATIONS & ARCHITECTURE

AngelGuard™ Technical Overview

Patented nail-art sensor technology engineered for fast, presumptive GHB detection in alcoholic drinks.

Technical Specifications

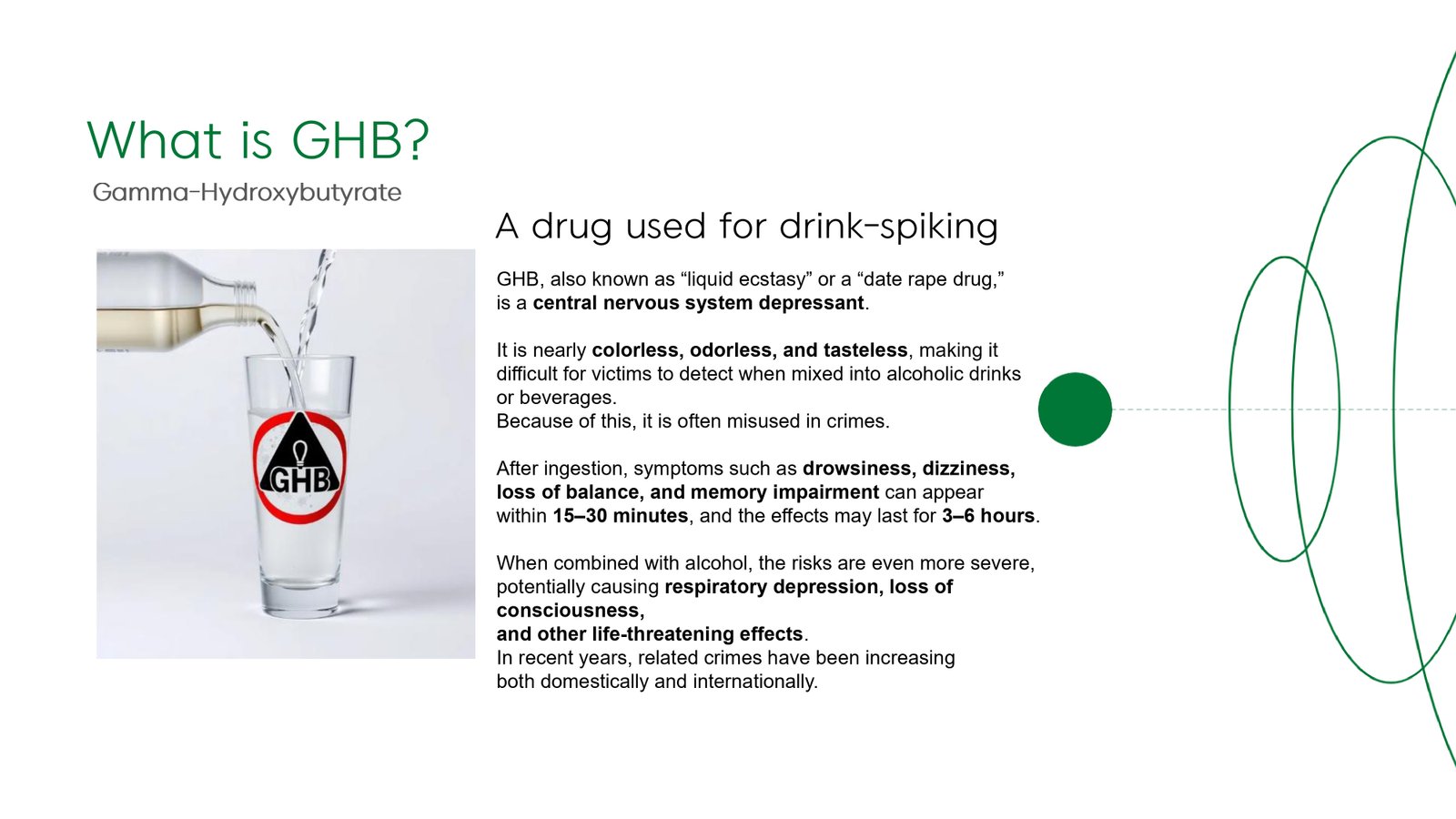

Target Analyte	Gamma-Hydroxybutyrate (GHB)
Format & Form Factor	Wearable adhesive nail-art patch / surface sticker
Response Time	Less than 1 minute (visual colorimetric indicator)
Required Liquid Volume	1 single drop (~0.05 mL) of beverage

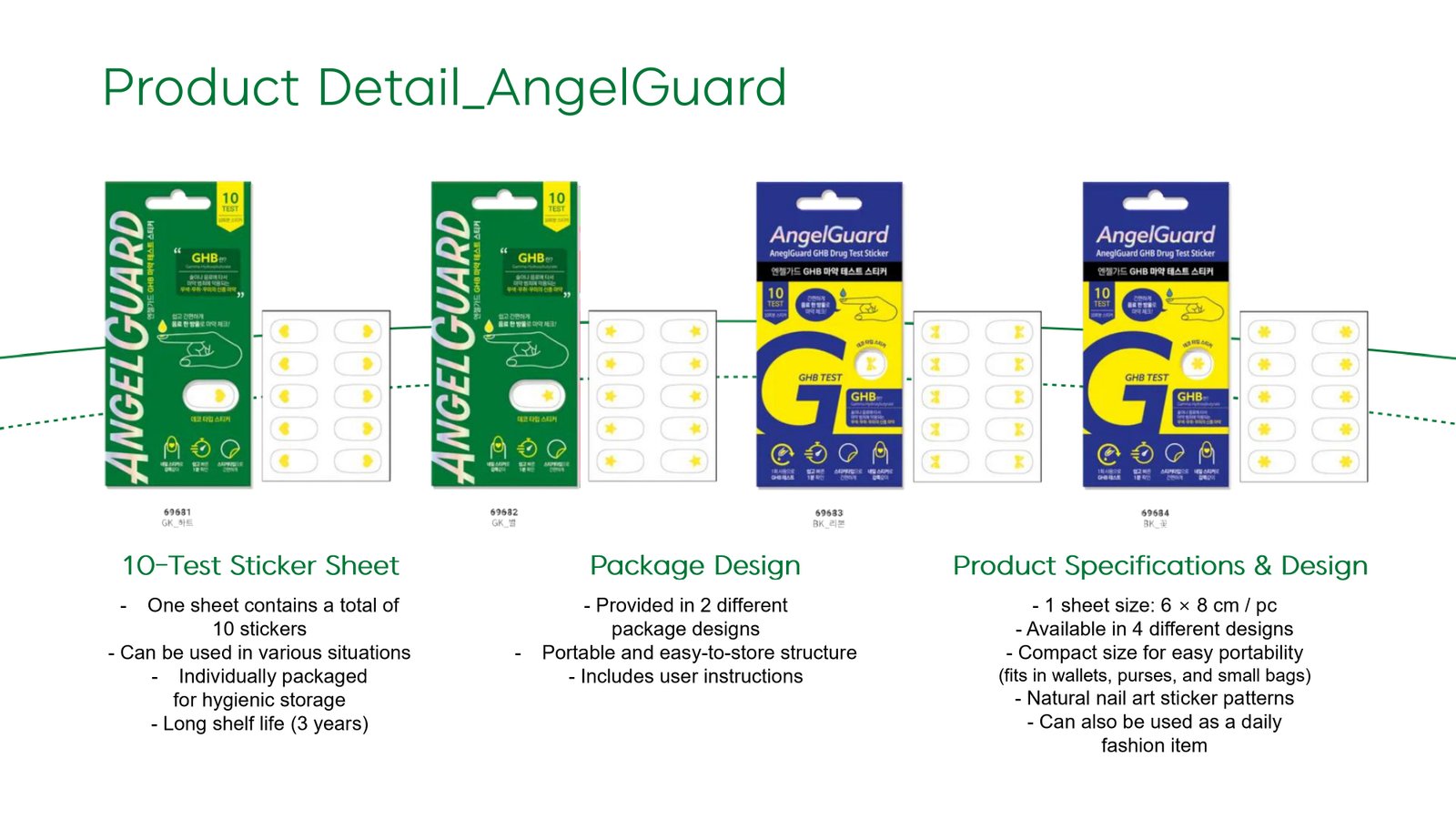

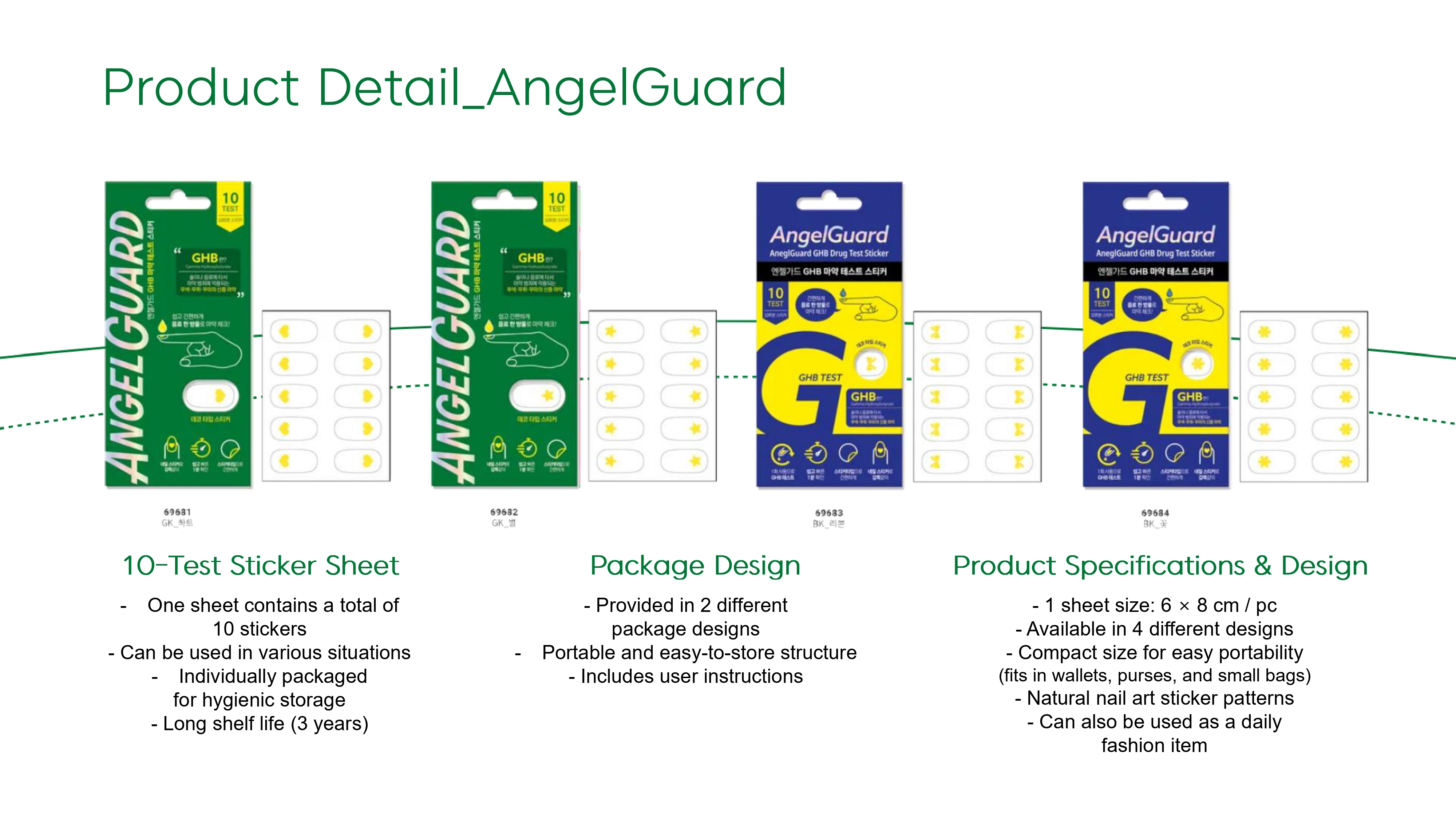

Package Configuration	10 test stickers per sheet / sealed foil barrier pouch
Sheet Dimensions	60 mm × 80 mm (credit card profile)
Shelf Life	36 months (sealed at room temperature)
Compliance Standard	California Assembly Bill 1013 (B&P §25624) Type 48 Ready
